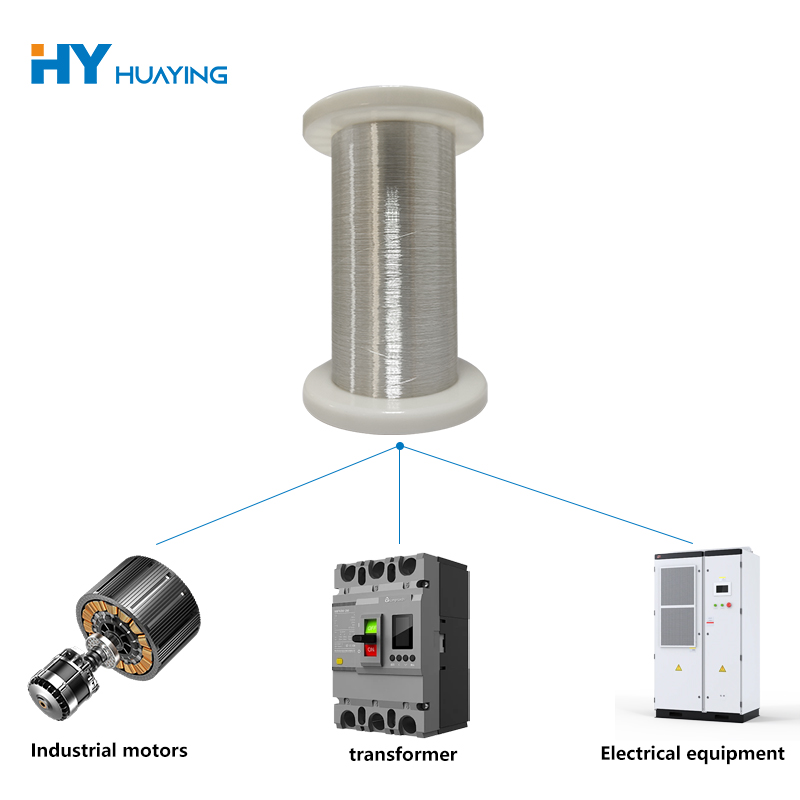

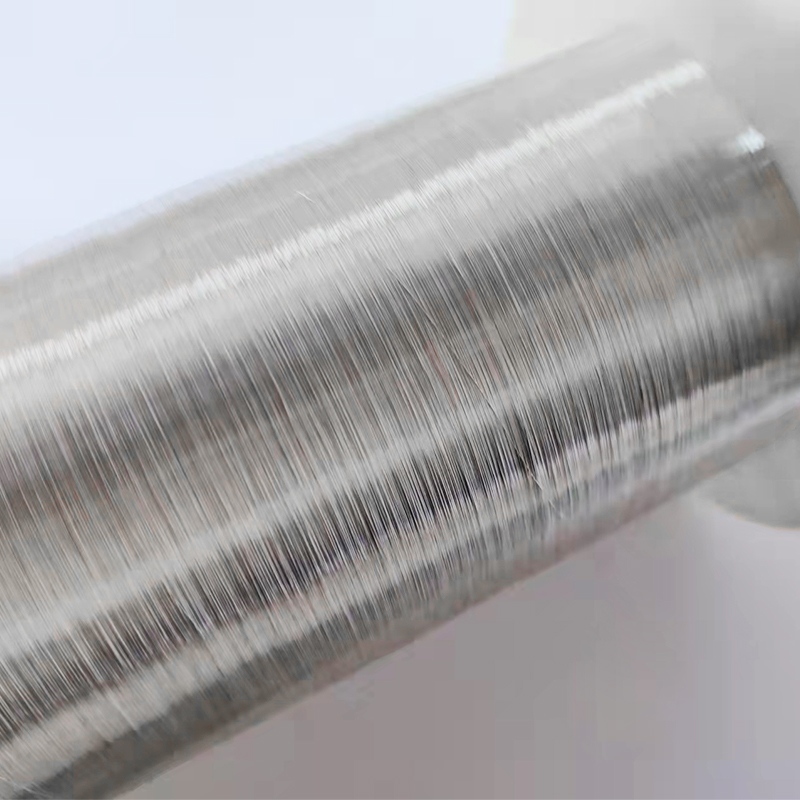

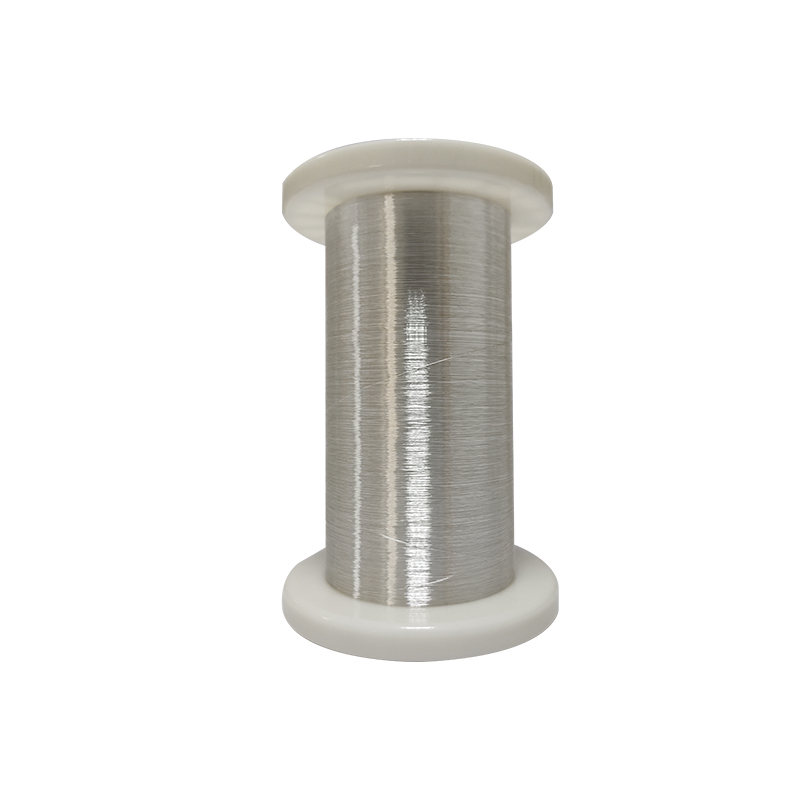

Triple Insulated Magnet Wire
Huaying Triple Insulated Magnet Wire is made in China, supplied by Huizhou Huaying Electronic Technology Co., Ltd. Our products are of reliable quality, and we have customers all over the world. You see, our company has been established for over a decade, making it a well-established brand. We've experienced rapid growth, and we've always adhered to the principles of integrity, professionalism, and innovation—focusing not only on producing quality products but also on building a strong reputation. We strive to achieve mutual success with our customers, earning profits together, and building a bright future together. This product, after extensive research and development and extensive testing, is a high-quality product. Order with confidence; you won't be disappointed.
Highly Corrosion-Resistant Products
In fields like automotive electronics and industrial control, equipment frequently comes into contact with various chemicals and is susceptible to corrosion, placing exceptionally high demands on the wire's corrosion resistance. Huaying Triple Insulated Magnet Wire undergoes a special treatment, resulting in exceptional corrosion resistance, making it impervious to a wide range of solvents and chemicals. Even after prolonged exposure to harsh chemical environments, its electrical performance remains stable, unaffected by corrosion. This ensures reliable operation in these harsh environments, significantly extending the lifespan of equipment and significantly contributing to its long-term, stable operation.
Excellent Product Flexibility
When manufacturing precision electronic components, the flexibility and structural stability of the wire are crucial. Huaying Triple Insulated Magnet Wire is specially tuned for optimal flexibility. This makes it easy to work with, allowing workers to easily bend and wind it, as smooth as a soft silk thread. Furthermore, once formed into a coil, its structure is stable, preventing deformation or damage from external forces during use, ensuring consistent performance. This excellent combination of flexibility and stability makes it an ideal choice for precision electronic components and significantly contributes to the high-quality production of these components.
Comprehensive Product Support Services
Our company has established a comprehensive technical support system, providing professional advice and guidance from the moment customers begin selecting their products. With extensive experience in the insulated wire industry, our technical team can understand our customers' specific needs. By integrating the various specifications and features of Huaying Triple Insulated Magnet Wire, they can accurately recommend the most suitable model, helping customers choose the right one from a wide range of options without wasting time. Once the product is in use, we provide detailed application guidance throughout the entire process. Whether it's installation and commissioning, or any issues encountered during use, our technical team will promptly respond and provide professional solutions. Simply put, like experienced technicians, they can pinpoint the problem and provide effective solutions. They help customers optimize product designs, maximize the performance of Huaying Triple Insulated Magnet Wire, and make their products more competitive. We help customers get things done, and together we build a prosperous future.
Specifications(single series.Conventional)
| Conductor | Finished outside diameter | Conductor resistance(20 degrees Celsius) (Ω/km) | Elongation % | |||
| Conductor | Tolerance | Minimum Value | Target Value | Maximum Value | ||
| 0.15 | 0.008 | 0.342 | 0.350 | 0.358 | 1037.00 | ≥10% |
| 0.16 | 0.008 | 0.352 | 0.360 | 0.368 | 908.80 | ≥10% |
| 0.17 | 0.008 | 0.362 | 0.370 | 0.378 | 853.50 | ≥10% |
| 0.18 | 0.008 | 0.372 | 0.380 | 0.388 | 757.20 | ≥10% |
| 0.20 | 0.008 | 0.392 | 0.400 | 0.408 | 577.20 | ≥10% |
| 0.21 | 0.008 | 0.402 | 0.410 | 0.418 | 549.00 | ≥10% |
| 0.22 | 0.008 | 0.412 | 0.420 | 0.428 | 498.40 | ≥10% |
| 0.23 | 0.008 | 0.422 | 0.430 | 0.438 | 454.50 | ≥10% |
| 0.24 | 0.008 | 0.432 | 0.440 | 0.448 | 416.20 | ≥10% |
| 0.25 | 0.008 | 0.442 | 0.450 | 0.458 | 370.20 | ≥10% |
| 0.26 | 0.008 | 0.452 | 0.460 | 0.468 | 358.40 | ≥10% |
| 0.27 | 0.008 | 0.462 | 0.470 | 0.478 | 331.40 | ≥15% |
| 0.28 | 0.008 | 0.472 | 0.480 | 0.488 | 294.10 | ≥15% |
| 0.29 | 0.008 | 0.482 | 0.490 | 0.498 | 285.70 | ≥15% |
| 0.30 | 0.008 | 0.492 | 0.500 | 0.508 | 254.00 | ≥15% |
| 0.32 | 0.008 | 0.512 | 0.520 | 0.528 | 222.80 | ≥15% |
| 0.35 | 0.008 | 0.542 | 0.550 | 0.558 | 185.70 | ≥15% |
| 0.37 | 0.008 | 0.562 | 0.570 | 0.578 | 165.90 | ≥15% |
| 0.40 | 0.008 | 0.592 | 0.600 | 0.608 | 141.70 | ≥15% |
| 0.45 | 0.008 | 0.642 | 0.650 | 0.658 | 112.10 | ≥15% |
| 0.50 | 0.008 | 0.692 | 0.700 | 0.708 | 89.95 | ≥20% |
| 0.55 | 0.008 | 0.742 | 0.750 | 0.758 | 78.15 | ≥20% |
| 0.60 | 0.008 | 0.792 | 0.800 | 0.808 | 65.26 | ≥20% |
| 0.65 | 0.008 | 0.842 | 0.850 | 0.858 | 55.31 | ≥20% |
| 0.70 | 0.010 | 0.892 | 0.900 | 0.908 | 47.47 | ≥20% |
| 0.75 | 0.010 | 0.942 | 0.950 | 0.958 | 41.19 | ≥20% |
| 0.80 | 0.010 | 0.992 | 1.000 | 1.008 | 36.08 | ≥25% |
| 0.85 | 0.010 | 1.042 | 1.050 | 1.058 | 31.87 | ≥25% |
| 0.90 | 0.010 | 1.092 | 1.100 | 1.108 | 28.35 | ≥25% |
| 0.95 | 0.010 | 1.142 | 1.150 | 1.158 | 25.38 | ≥25% |
| 1.00 | 0.010 | 1.192 | 1.200 | 1.208 | 23.33 | ≥25% |
