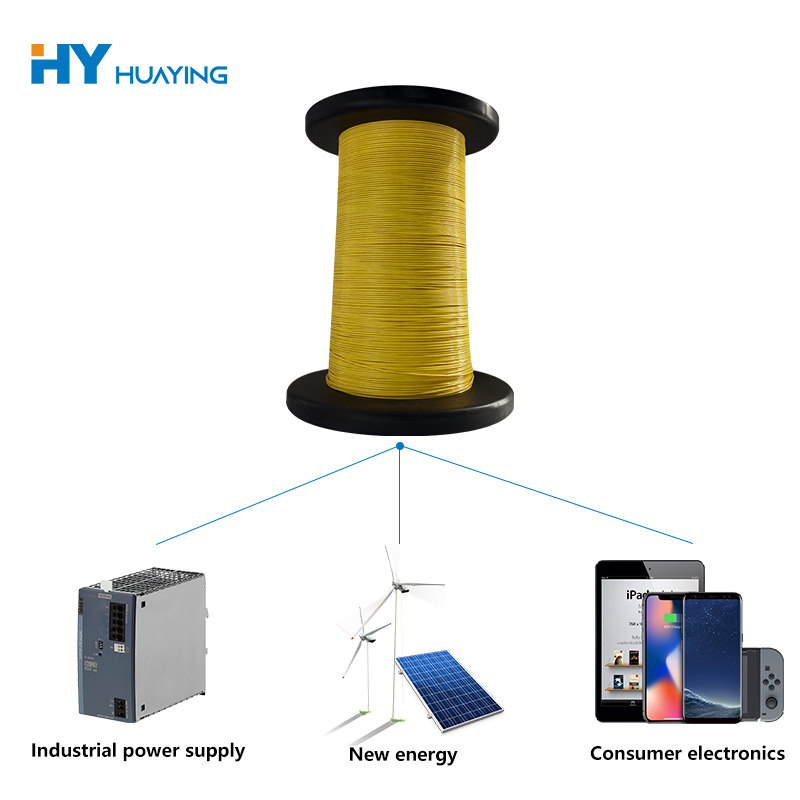

What Are the Key Advantages of Film-Folded Wire Over Traditional Magnet Wire

If you're involved in designing or manufacturing high-performance electrical equipment, you’ve likely faced a common set of challenges. How do you push efficiency and reliability further within the same physical space? How do you protect windings from harsh environments without compromising performance? For years, traditional magnet wire was the default answer. But now, a superior alternative is reshaping expectations. At Huaying, we pioneered advanced Film-Folded Wire technology precisely to solve these enduring engineering puzzles. Our solution isn't just an iteration; it's a transformative approach to winding conductors.

What Makes Film-Folded Wire Structurally Superior?

The core innovation lies in its construction. Unlike a round or rectangular magnet wire with a uniform enamel coating, Film-Folded Wire starts with a precision-shaped flat copper or aluminum conductor. A specialized insulating film is then meticulously folded around it, creating a seamless, lap-welded seam. This process, perfected by Huaying engineers, results in a conductor with no weak points along its edges. The direct benefit? Far superior dielectric strength and mechanical integrity at the corners and edges, which are traditionally the most vulnerable areas in demanding applications.

How Do the Technical Parameters Compare Directly?

Let’s move from theory to tangible specs. The advantages of Film-Folded Wire become crystal clear when we list and compare its key parameters against traditional options.

Key Performance Highlights of Huaying Film-Folded Wire

• Exceptional Partial Discharge Inception Voltage (PDIV): The continuous, film-based insulation system significantly outperforms enamel in resisting partial discharge, a primary cause of long-term motor and transformer failure.

• Superior Thermal Conductivity: The compact, rectangular shape and direct material contact improve heat dissipation from the conductor, leading to lower operating temperatures.

• Enhanced Space Factor (Fill Factor): The rectangular geometry allows for denser, more efficient winding, packing more conductive material into a given slot area.

• Outstanding Mechanical and Chemical Resistance: The polymer film offers robust protection against abrasion, moisture, and aggressive chemicals like refrigerants and oils.

Consider this direct comparison in a typical application scenario:

This table isn't just data; it's the blueprint for a more reliable and compact design. By switching to Film-Folded Wire, you directly address the pain points of space constraints, thermal management, and longevity.

Why Should You Consider This for Your Next Project?

I speak from experience when I say that integrating Film-Folded Wire is about proactive problem-solving. It’s for engineers who are tired of trade-offs. If your goals include achieving a higher power density, extending the service life of your products in challenging conditions, or simply pushing the boundaries of efficiency, this technology is your strategic advantage. The initial inquiry is an investment in eliminating future failure points. Every meter of Film-Folded Wire from Huaying is engineered with this mission in mind.

We understand that adopting a new component requires trust and clarity. Our technical team is ready to provide detailed samples, application notes, and direct support to validate how Film-Folded Wire can revolutionize your specific design. Don't settle for incremental improvements when a foundational upgrade is available. Contact us today with your application parameters, and let's discuss how we can help you build a better, more resilient product. We look forward to your inquiry.
