Why is Film-Folded Wire a Preferred Choice for High-Frequency Applications

If you’re wrestling with signal integrity, power loss, or overheating in your high-frequency designs, you’re not alone. For years, these were our constant challenges too. The quest for a conductor that truly meets the demands of modern electronics led us to a transformative solution: Film-Folded Wire. At Huaying, we didn’t just adopt this technology; we mastered it, engineering our wires to deliver unparalleled performance where it matters most.

What Makes Film-Folded Wire Technologically Superior

Traditional round wires fall short at high frequencies due to the "skin effect," where current flows only on the conductor's outer surface, wasting the core. So, how does Film-Folded Wire solve this? It ingeniously folds a thin, flat conductive film into a cylindrical shape. This creates a much larger effective surface area for current flow, perfectly combating the skin effect. The result is significantly lower AC resistance (Rac) compared to solid round wires of the same cross-sectional area. This fundamental advantage is why Film-Folded Wire is revolutionizing applications from RF inductors and high-speed data lines to miniaturized power supplies.

How Do Huaying's Film-Folded Wire Parameters Ensure Your Success

Our engineering philosophy is simple: provide transparent, superior specs that solve real problems. Here are the key parameters that set our Film-Folded Wire apart:

• Ultra-Low AC Resistance: Directly tackles core power loss and thermal issues.

• Exceptional Space Factor: Enables more compact and efficient coil winding.

• Superior Heat Dissipation: The unique structure allows for better thermal management.

• Customizable Film Thickness: Precisely tailored to your target frequency range.

For a clear comparison, see how our Film-Folded Wire stacks up against conventional alternatives:

This isn’t just data; it’s the blueprint for your product’s enhanced efficiency and reliability. By choosing Huaying, you gain a partner dedicated to pushing the limits of what Film-Folded Wire can achieve.

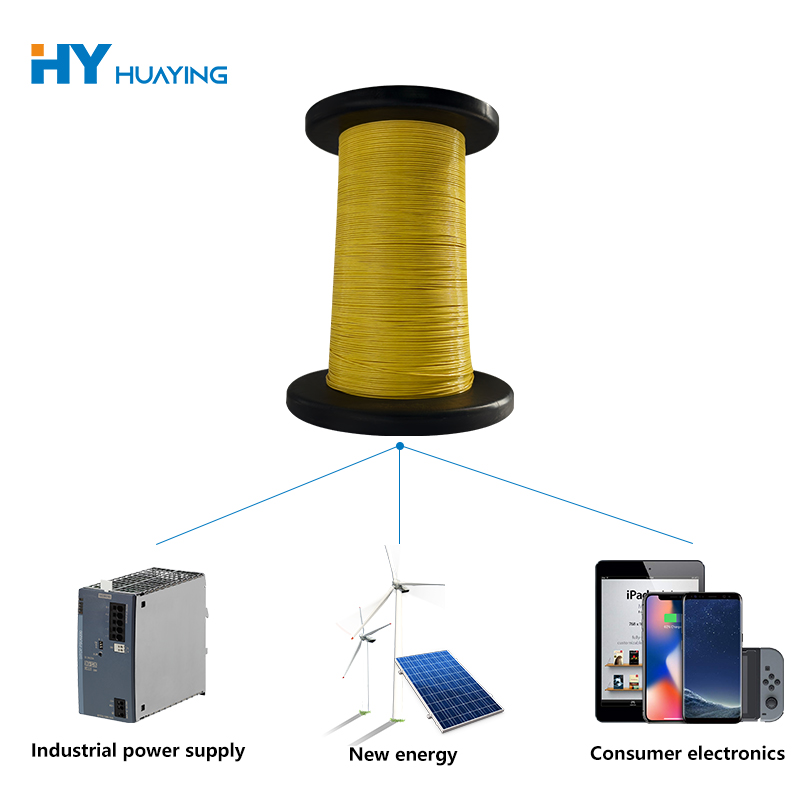

Where Can You Implement Film-Folded Wire for Maximum Impact

You might be wondering, "Is this the right solution for my specific project?" The versatility of Film-Folded Wire makes it a game-changer across several critical areas:

• Telecommunications: For RF chokes and filters in 5G infrastructure, where signal purity is non-negotiable.

• Automotive Electronics: In EV powertrains and ADAS sensors, where efficiency and size are constrained.

• High-Frequency Power Converters: Enabling smaller, cooler, and more powerful SMPS and OBC modules.

In each scenario, the core benefit remains: maximizing performance while minimizing loss and footprint. This is the consistent advantage our Film-Folded Wire delivers.

Are You Ready to Elevate Your High-Frequency Design

The shift to Film-Folded Wire is more than a component change; it’s a strategic upgrade for your product’s core performance. At Huaying, we provide not just a product, but the technical expertise to integrate it seamlessly into your next breakthrough design.

Stop compromising on efficiency and thermal performance. Contact us today to discuss your application, request samples, or get a tailored quote. Let our Film-Folded Wire be the key to unlocking your design’s full potential.
