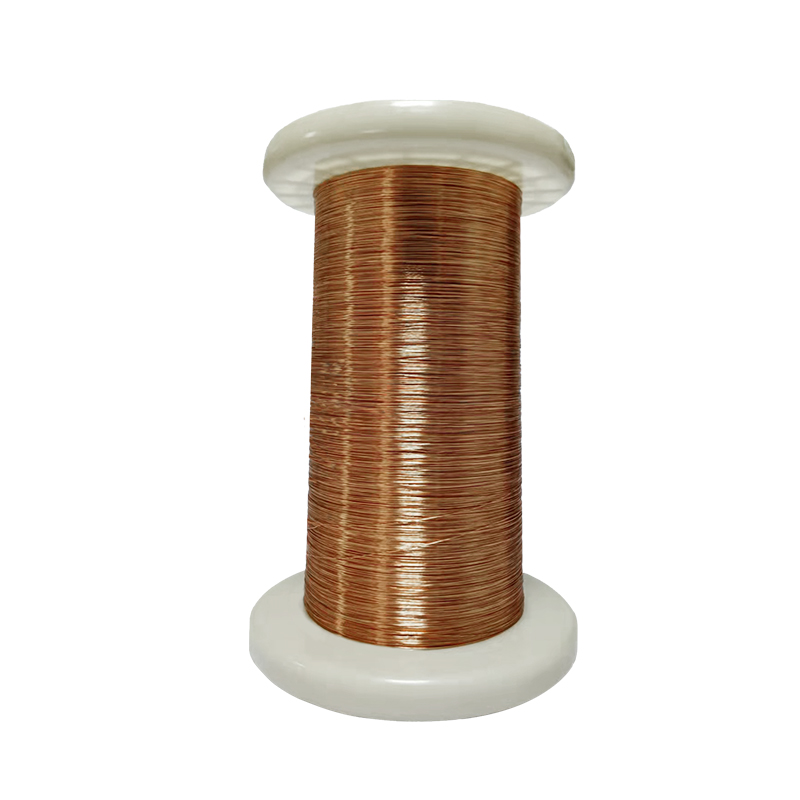

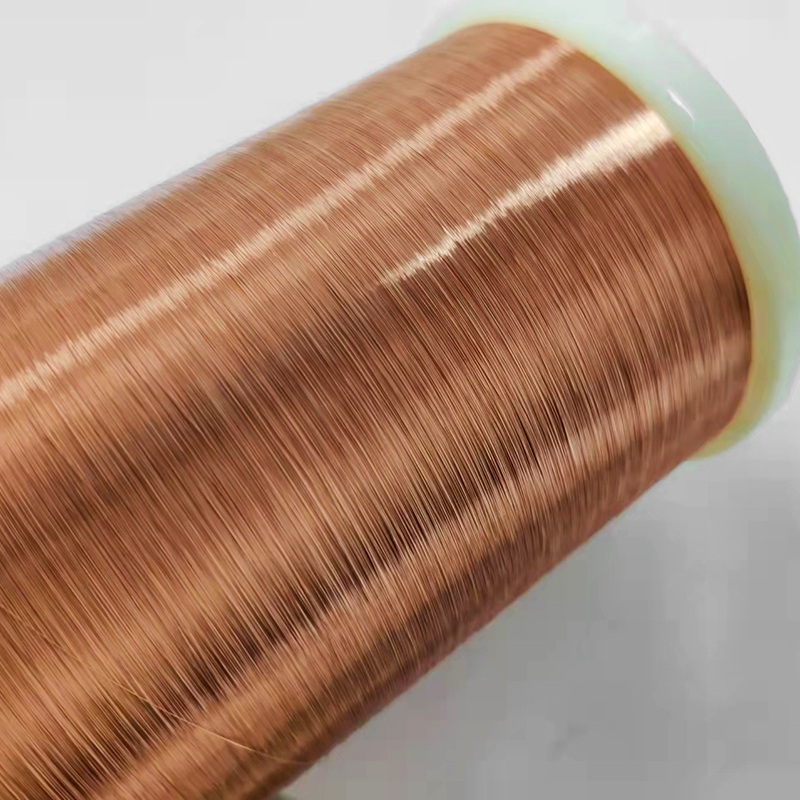

Bondable Magnet Wire

Let me introduce you to a truly remarkable company: Huaying Electronic Technology Co., Ltd. With over a decade of experience in the field of insulated wire research and development, they possess a wealth of experience, like a martial arts master accumulating profound inner strength within their own realm. Furthermore, the company has achieved numerous international certifications, including ISO 9001 and IATF 16949, and its products comply with international safety standards such as UL and VDE. This is like a passport to the international market. Therefore, what are you worried about with the Huaying Bondable Magnet Wire products they develop and manufacture?

Send Inquiry

Product Description

Product Optional Features and Configurations

For different usage scenarios, Huaying Bondable Magnet Wire is like a customized treasure chest, packed with a variety of practical features for you to choose from. Users can choose from a variety of temperature-resistant self-adhesive layers to suit their specific needs. With a secondary softening temperature range of 130°C to 190°C, it meets various curing process requirements. For example, some processes require lower curing temperatures, so a 130°C self-adhesive layer is ideal. For processes requiring higher temperatures, a 190°C self-adhesive layer is ideal.

Product Surface Treatment Options

Huaying Bondable Magnet Wire offers a variety of surface treatment options, like providing users with different "tools" to choose from based on their specific welding needs. If welding is required during production, choose a weldable surface treatment; if not, a non-weldable surface treatment will meet your needs. Furthermore, three film thicknesses are available, providing engineers with ample customization options. Different film thicknesses vary in insulation performance and mechanical strength, allowing engineers to select the most appropriate film thickness based on the specific application requirements.

Product Low Dielectric Loss

In today's era of rapid technological advancement, high-frequency devices are increasingly being used. Applications like 5G base stations and wireless charging are no strangers to us. Huaying Bondable Magnet Wire is a true "king" performer in high-frequency applications! It has its own "secret weapon." By precisely controlling the conductor's surface roughness (Ra < 0.2μm) and the uniformity of the insulation thickness, it successfully minimizes dielectric loss. This removes many obstacles to device operation, ensuring smoother signal transmission. Dielectric loss may not be well understood, but simply put, it's like a power-hungry monster that consumes energy and impacts device performance. This product, through precise control, significantly reduces the impact of this "little monster."

speclflcatlons mm	1B			2B			4B(Specially made)
speclflcatlons mm	minimum insulation thickness(mm)	minimum selfadheslve thickness(mm)	maxlmum outslde dlameter(mm)	minimum insulation thickness(mm)	minimum selfadheslve thickness(mm)	maxlmum outslde dlameter(mm)	minimum insulation thickness(mm)	minimum selfadheslve thickness(mm)	maxlmum outslde dlameter(mm)
0.025	0.003	0.002	0.034	0.005	0.002	0.037
0.028	0.003	0.003	0.038	0.006	0.003	0.042	/	/	/
0.030	0.003	0.003	0.042	0.006	0.003	0.046	/	/	/
0.032	0.003	0.003	0.044	0.006	0.003	0.048	/	/	/
0.035	0.003	0.004	0.047	0.007	0.004	0.051	/	/	/
0.036	0.004	0.004	0.050	0.007	0.004	0.055	/	/	/
0.037	0.004	0.004	0.051	0.008	0.004	0.056	/	/	/
0.038	0.004	0.004	0.052	0.008	0.004	0.057	/	/	/
0.039	0.004	0.004	0.053	0.008	0.004	0.058	/	/	/
0.040	0.004	0.004	0.055	0.008	0.004	0.060	0.002	0.004	0.047
0.042	0.004	0.004	0.058	0.009	0.004	0.064	0.002	0.004	0.050
0.043	0.004	0.004	0.059	0.009	0.004	0.065	0.002	0.004	0.051
0.044	0.004	0.004	0.060	0.009	0.004	0.066	0.002	0.004	0.052
0.045	0.004	0.004	0.062	0.009	0.004	0.068	0.002	0.004	0.053
0.047	0.004	0.004	0.064	0.009	0.004	0.070	0.002	0.004	0.055
0.048	0.004	0.004	0.067	0.010	0.005	0.073	0.002	0.004	0.056
0.050	0.004	0.004	0.068	0.010	0.005	0.074	0.002	0.004	0.058
0.052	0.004	0.004	0.070	0.010	0.005	0.074	0.002	0.004	0.060
0.055	0.004	0.004	0.072	0.011	0.005	0.078	0.002	0.004	0.063
0.055	0.004	0.004	0.075	0.011	0.005	0.082	0.002	0.004	0.063
0.058	0.004	0.004	0.078	0.011	0.005	0.085	0.002	0.004	0.066
0.060	0.004	0.004	0.081	0.012	0.005	0.088	0.002	0.004	0.068
0.063	0.004	0.004	0.085	0.012	0.005	0.092	0.002	0.004	0.071
0.065	0.004	0.004	0.087	0.012	0.005	0.094	0.002	0.004	0.073
0.070	0.004	0.004	0.092	0.012	0.006	0.099	0.002	0.004	0.078
0.075	0.004	0.004	0.100	0.012	0.006	0.106	/	/	/
0.080	0.004	0.004	0.105	0.014	0.007	0.112	/	/	/
0.085	0.004	0.004	0.112	0.015	0.007	0.119	/	/	/
0.090	0.005	0.005	0.117	0.015	0.007	0.125	/	/	/
0.095	0.005	0.005	0.123	0.016	0.007	0.131	/	/	/
0.100	0.007	0.007	0.129	0.016	0.007	0.137	/	/	/
0.110	0.007	0.007	0.139	0.016	0.007	0.147	/	/	/
0.120	0.008	0.008	0.151	0.017	0.008	0.160	/	/	/
0.125	0.010	0.009	0.158	0.019	0.009	0.168	/	/	/
0.130	0.010	0.009	0.163	0.019	0.009	0.171	/	/	/
0.140	0.010	0.009	0.175	0.021	0.010	0.186	/	/	/
0.150	0.011	0.009	0.186	0.023	0.010	0.197	/	/	/
