What is a Triple Insulated Wire?

At Huizhou Huaying Electronics Technology Co., Ltd., our commitment to delivering advanced wiring solutions is reflected in our flagship product: the Triple Insulated Wire. In this article we explore what this term means, how our product is designed and manufactured, its key technical parameters, typical applications and frequently asked questions. Our aim is to help you understand the value and specs of this wiring solution from an expert perspective.

Definition and Concept

A Triple Insulated Wire is an electrical wire designed with three distinct insulation layers surrounding the conductor. This construction provides reinforced insulation, enhanced safety and improved performance compared to conventional single‑ or double‑insulated wires. In our factory at Huizhou Huaying Electronics Technology Co., Ltd., we manufacture these wires to meet demanding applications such as high frequency transformers, micro‑motors, power supplies, automotive electronics and other environments where compact size, high reliability and safety are required.

Why Use Triple Insulated Wire?

Our use of the triple-insulated wire design offers several direct benefits:

• Enhanced insulation strength: The three layers offer higher breakdown voltage and better protection against electrical faults.
• Space and cost savings in equipment: Because extra insulating tapes or barriers may not be needed, device size and material costs can be reduced.
• Improved thermal, mechanical and chemical resistance: Many triple insulated wires are built for high temperature, high stress or harsh environments.
• Better performance in high‑frequency, compact or miniaturised systems: Allows transformer or motor windings to be denser.

At Huaying Electronics, our focus is on delivering wires that satisfy these rigorous conditions. Our factory production line is optimized for the triple‑layer insulation build, ensuring consistent quality and performance.

Key Technical Parameters of Our Triple Insulated Wire

Our factory at Huizhou Huaying Electronics Technology Co., Ltd. produces this variant of triple insulation with tight control over conductor diameter, insulation build, and certification standards. We supply to high‑end markets requiring precision and reliability.

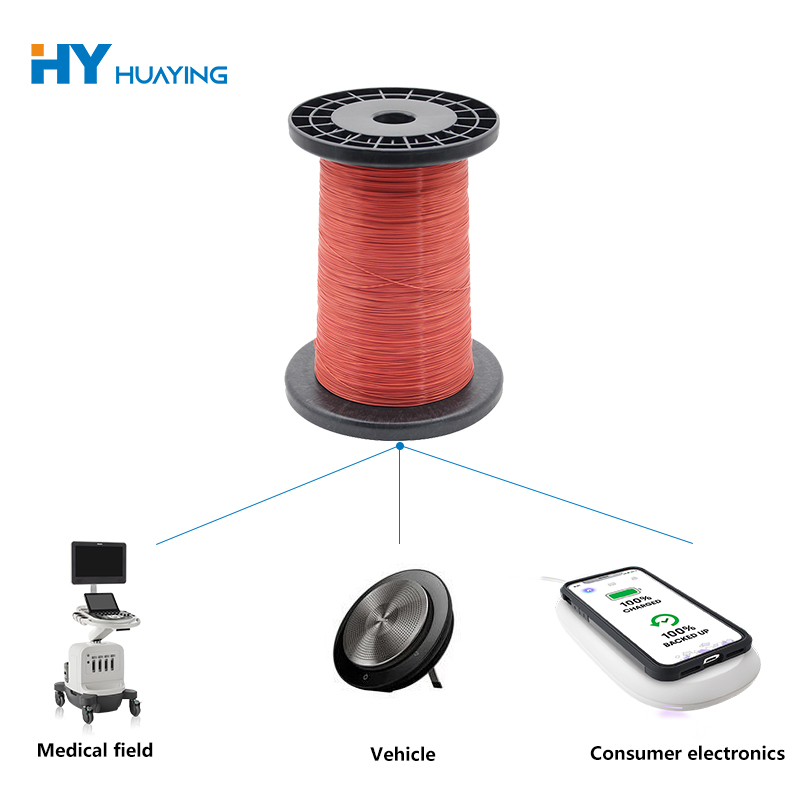

Typical Applications

• Switching power supplies and high‑frequency transformers — thanks to compact winding, high insulation breakdown and reduced stray losses.
• Automotive electronics — where space is limited, thermal and mechanical stresses are high, and reliability is paramount.
• Micro‑motors and servo‑motors — winding density and insulation performance are critical.
• Communication equipment and data centre power systems — high frequency, high cleanliness, compact size.
• Industrial and aerospace equipment — where harsh environments demand high temperature and vibration-resistant wiring.

In each of these cases, our factory ensures that our product aluminium or copper conductors, layered insulation and quality testing meet the requirements of customers. Choosing our Triple Insulated Wire means selecting a wiring solution engineered for performance, durability and safety.

Installation and Handling Considerations

• Avoid excessive bending radius below the specified value — while the insulation is more robust than standard wire, proper bend radius ensures longer life.
• Ensure winding machines or manual winding processes are set up for the smaller overall diameter and denser windings that triple insulation allows.
• Check that your application’s thermal class, voltage rating and certification are appropriate for the selected wire model in our range.
• Store the wire in a clean, dry environment away from direct UV or corrosive chemicals.
• Follow manufacturer guidelines for soldering or connector termination.

In installing our wire from Huizhou Huaying Electronics Technology Co., Ltd., you will experience fewer insulation failures, better compactness and higher reliability in your final assemblies.

FAQ – Frequently Asked Questions

Q1. What is a Triple Insulated Wire and how is it different from a standard insulated wire?
A: A Triple Insulated Wire is constructed with three distinct insulation layers around the conductor, rather than just one or two. This offers enhanced electrical safety, better mechanical and thermal performance, and often allows the elimination of additional insulation tapes or barriers in equipment. Standard insulated wires may only provide basic insulation.

Q2. How do I choose the right specification of Triple Insulated Wire for my application?
A: Consider the conductor size, insulation build, application environment and space constraints. At Huizhou Huaying Electronics Technology Co., Ltd., our factory offers multiple conductor diameters, temperature classes and certified builds so you can match the wire to your exact requirement. Ensure the rated voltage, insulation breakdown, mechanical stress and thermal environment all align with your design.

Q3. Can using Triple Insulated Wire help reduce the size and cost of my transformer or motor design?
A: Yes. The triple insulation ensures reinforced insulation between windings and often eliminates the need for insulating tapes or barriers, allowing smaller, lighter windings with tighter coil spacing. This reduction in auxiliary insulation materials and winding space translates into cost savings and improved reliability. At Huizhou Huaying Electronics Technology Co., Ltd., our Triple Insulated Wire solutions are designed for space‑, cost‑ and performance‑sensitive applications.

Conclusion

To summarise, the term “What is a triple insulated wire?” encompasses more than just a product label. It is a high‑performance wiring technology built around three insulation layers, designed for demanding electrical, thermal and mechanical environments. At Huizhou Huaying Electronics Technology Co., Ltd., our deep manufacturing experience and commitment to quality mean that our Triple Insulated Wire range offers reliable performance, compact form, and certified safety for a range of applications from power supplies to automotive and industrial systems.

If you are designing equipment where safety, size, reliability and performance all matter, our factory stands ready to support your needs with tailored solutions. By choosing our Triple Insulated Wire, you are investing in wiring that meets high standards and supports long‑term product success. We look forward to working with you and delivering wiring solutions that exceed expectations. At Huizhou Huaying Electronics Technology Co., Ltd., our promise is excellence in every spool we manufacture.
