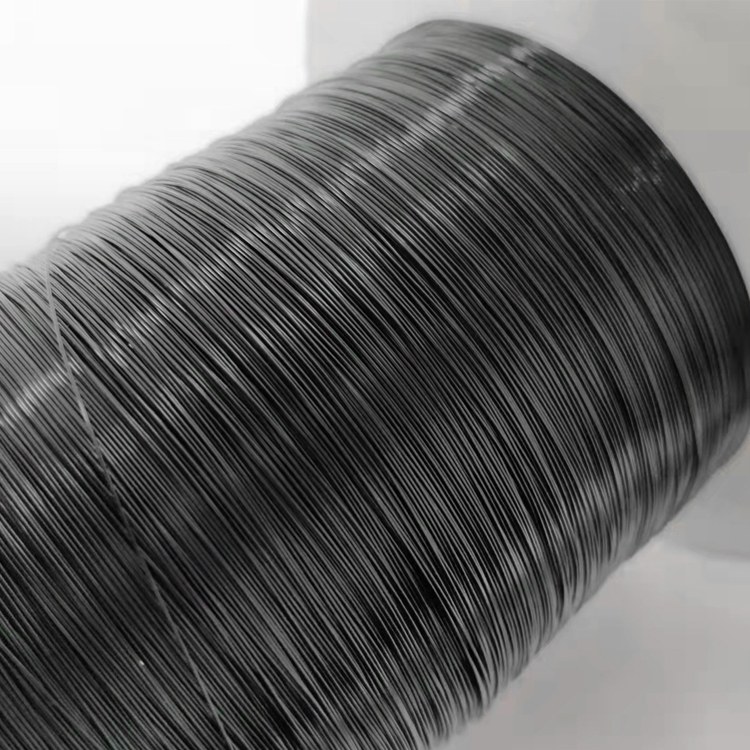

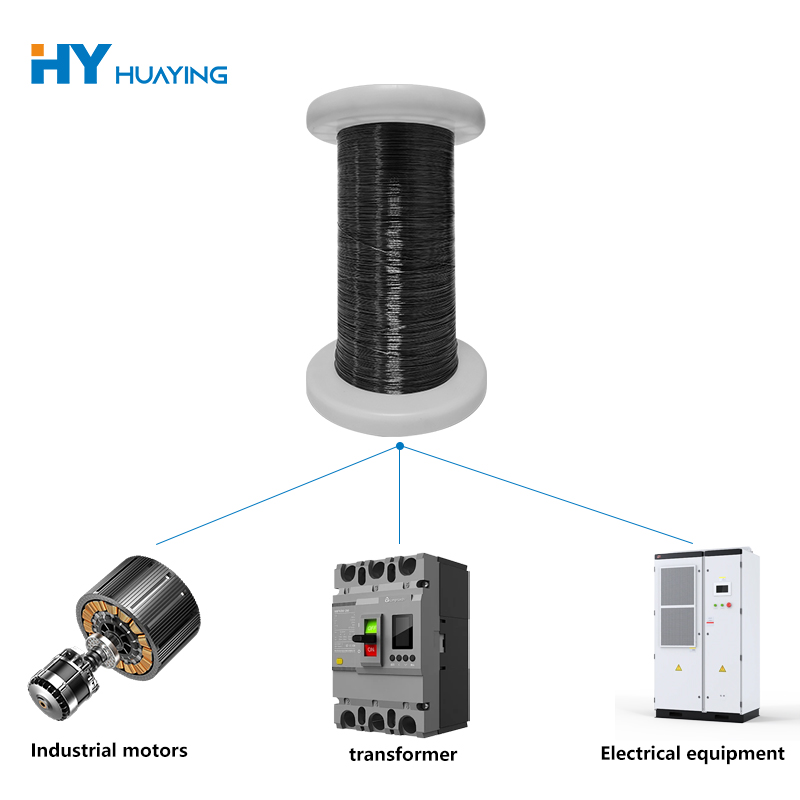

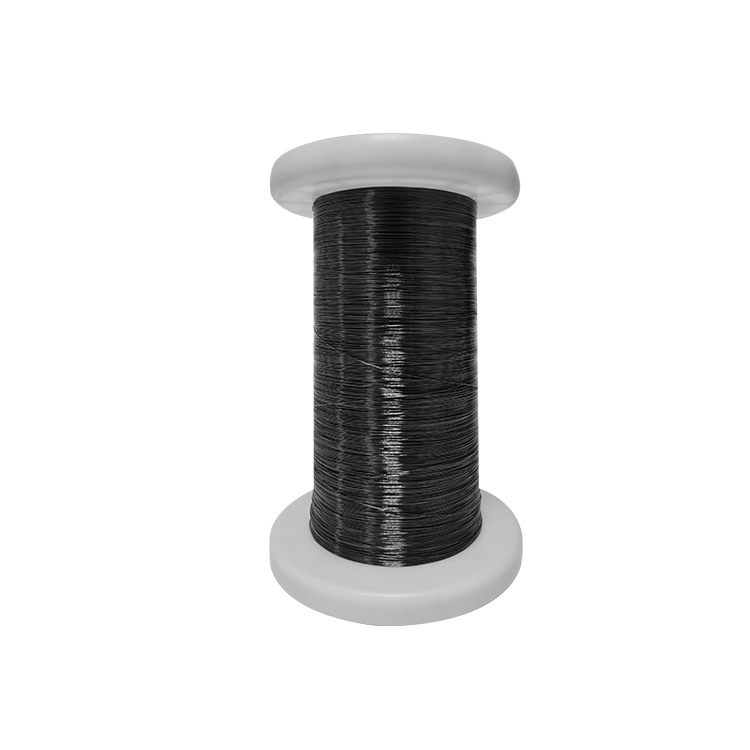

Litz Magnet Wire

Huaying Litz Magnet Wire is a star product supplied by Huizhou Huaying Electronic Technology Co., Ltd. With over a decade of technical research and dedication, the company has become a leader in the industry. Over the years, Huizhou Huaying Electronic Technology Co., Ltd. has earned the trust of numerous renowned companies, including industry giants such as Huawei, Xiaomi, and BYD, through its unwavering commitment to quality and continuous technological innovation. Its consistent supply of high-quality products to these companies demonstrates its industry leadership. With products from such a company, you can be assured of purchasing and using them.

Send Inquiry

Product Description

Product Quality Assurance

Over the years, the company has consistently committed itself to technological research and development and innovation, earning numerous patents through its tireless efforts. These patents are not only a testament to the company's technological strength, but also a key factor in its continued leadership in the industry. Furthermore, the company has successfully obtained numerous international certifications, including ISO and IATF. Obtaining these certifications means we meet internationally recognized standards in quality management, environmental management, occupational health and safety, and other areas. This ensures Huaying Litz Magnet Wire's quality and safety, ensuring our company maintains its position at the top of the industry.

High-Quality Materials

Huaying Litz Magnet Wire utilizes high-quality copper conductors and a high-performance insulating coating. These two materials are perfectly matched. They ensure smooth current transmission and unmatched conductivity, while also providing excellent insulation and reliable dielectric strength. Think about it: high-quality copper conductors are inherently highly conductive, allowing current to flow effortlessly. The high-performance insulating coating acts like a protective shield, tightly encasing the conductors and preventing current leakage, making it exceptionally safe to use. Furthermore, not only is the material high-quality, but the unique twisting process also makes the wire flexible and durable. Even in complex wiring environments, Huaying Litz Magnet Wire maintains its stability without compromising electrical performance. Our products won't malfunction due to harsh environments. This demonstrates our confidence in them. They provide reliable connectivity for a variety of complex electrical systems.

Product Temperature Resistance

In environments with exceptionally high temperature requirements, ordinary wires simply can't withstand them. Failures can occur at high temperatures, disrupting equipment operation. However, Huaying Litz Magnet Wire is different. Its exceptional temperature resistance allows it to operate normally even in high-temperature environments, maintaining consistent performance. For example, core components like motors and battery systems in new energy vehicles generate significant heat during operation, causing temperatures to rise rapidly. However, Huaying Litz Magnet Wire remains stable in these high-temperature environments, laying a solid foundation for the vehicles' speed and safety. Similarly, in 5G base stations, numerous electronic devices operate 24/7, dissipating significant heat. Huaying Litz Magnet Wire also performs effectively here, ensuring stable and efficient base station communications. It has long been an indispensable key material in these areas. Our products consistently perform exceptionally well, so what are you waiting for? We believe you won't be disappointed if you choose us.

specifkatiions	conductor tolerance	meter resistance		FIW4 external diameter mm		FIW5 external diameter mm		FIW6 external diameter mm		FIW7 external diameter mm		FIW8 external diameter mm		FIW9 external diameter mm
mm	mm	min	max	min	max	min	max	min	max	min	max	min	max	min	max
0.050	±0.002	7.9220	9.4890	0.075	0.085	0.085	0.095	0.095	0.105	0.106	0.116	--	--	--	--
0.063	±0.002	5.0450	5.9220	0.090	0.101	0.102 0.114		0.114	0.126	0.127	0.139	--	--	--	--
0.070	±0.003	4.0790	4.8900	0.098	0.110	0.111	0.123	0.124	0.136	0.137	0.149	0.150	0.162	0.163	0.175
0.080	±0.003	3.1330	3.7030	0.109	0.122	0.123	0.136	0.137	0.150	0.151	0.164	0.165	0.178	0.179	0.192
0.090	±0.003	2.4950	2.9000	0.121	0.134	0.135	0.148	0.149	0.162	0.163	0.176	0.177	0.190	0.191	0.204
0.100	±0.003	2.0340	2.3330	0.133	0.148	0.149	0.164	0.165	0.180	0.181	0.196	0.197	0.212	0.213	0.228
0.112	±0.003	1.6330	1.8480	0.148	0.164	0.165	0.181	0.182	0.198	0.199	0.215	0.216	0.232	0.233	0.249
0.114	±0.003	1.5760	1.7820	0.150	0.166	0.167	0.183	0.184	0.200	0.201	0.217	0.218	0.234	0.235	0.251
0.120	±0.003	1.4260	1.6030	0.159	0.176	0.177	0.194	0.195	0.212	0.213	0.230	0.231	0.248	0.249	0.266
0.127	±0.003	1.2770	1.4280	0.166	0.183	0.184	0.201	0.202	0.219	0.220	0.237	0.238	0.255	0.256	0.273
0.132	±0.003	1.1850	1.3200	0.172	0.191	0.192	0.211	0.212	0.231	0.232	0.251	0.252	0.271	0.272	0.291
0.140	±0.003	1.0550	1.1700	0.182	0.201	0.202	0.221	0.222	0.241	0.242	0.261	0.262	0.281	0.282	0.301
0.150	±0.003	0.9287	1.0158	0.194	0.215	0.216	0.237	0.238	0.259	0.260	0.281	0.282	0.300	0.300	0.320
0.160	±0.003	0.8122	0.8906	0.206	0.227	0.228	0.249	0.250	0.271	0.272	0.293	0.294	0.315	0.316	0.337
0.170	±0.003	0.7210	0.7871	0.218	0.241	0.242	0.265	0.266	0.289	0.290	0.313	0.314	0.337	0.338	0.361
0.180	±0.003	0.6444	0.7007	0.230	0.253	0.254	0.277	0.282	0.303	0.304	0.325	0.326	0.349	0.350	0.373
0.190	±0.003	0.5793	0.6277	0.241	0.265	0.266	0.290	0.291	0.315	0.316	0.340	0.341	0.365	0.366	0.390
0.200	±0.003	0.5237	0.5657	0.253	0.277	0.278	0.302	0.303	0.327	0.328	0.352	0.353	0.377	0.378	0.402
0.220	±0.003	0.4342	0.4664	0.277	0.303	0.304	0.330	0.331	0.357	0.358	0.384	0.385	0.411	0.412	0.438
0.250	±0.004	0.3345	0.3628	0.313	0.338	0.340	0.370	0.373	0.400	0.403	0.430	0.433	0.460	0.463	0.490
0.300	±0.004	0.2319	0.2505	0.370	0.400	0.401	0.431	0.432	0.462	0.463	0.493	0.494	0.524	0.525	0.555
0.350	±0.004	0.1722	0.1833	0.424	0.454	0.455	0.485	0.486	0.516	0.517	0.547	0.548	0.578	0.579	0.609
0.400	±0.005	0.1316	0.1407	0.479	0.509	0.510	0.540	0.541	0.571	0.572	0.602	0.603	0.633	--	--
0.450	±0.005	0.1042	0.1109	0.534	0.564	0.565	0.595	0.596	0.626	0.627	0.657	0.658	0.688	--	--
0.500	±0.005	0.0846	0.0895	0.588	0.628	0.629	0.669	0.670	0.700	0.701	0.738	--	--	--	--
0.550	±0.006	0.0698	0.0742	0.650	0.690	0.690	0.730	0.730	0.768	0.768	0.802	--	--	--	--
0.600	±0.006	0.0587	0.0622	0.710	0.739	0.740	0.780	0.781	0.820	0.822	0.855	--	--	--	--
