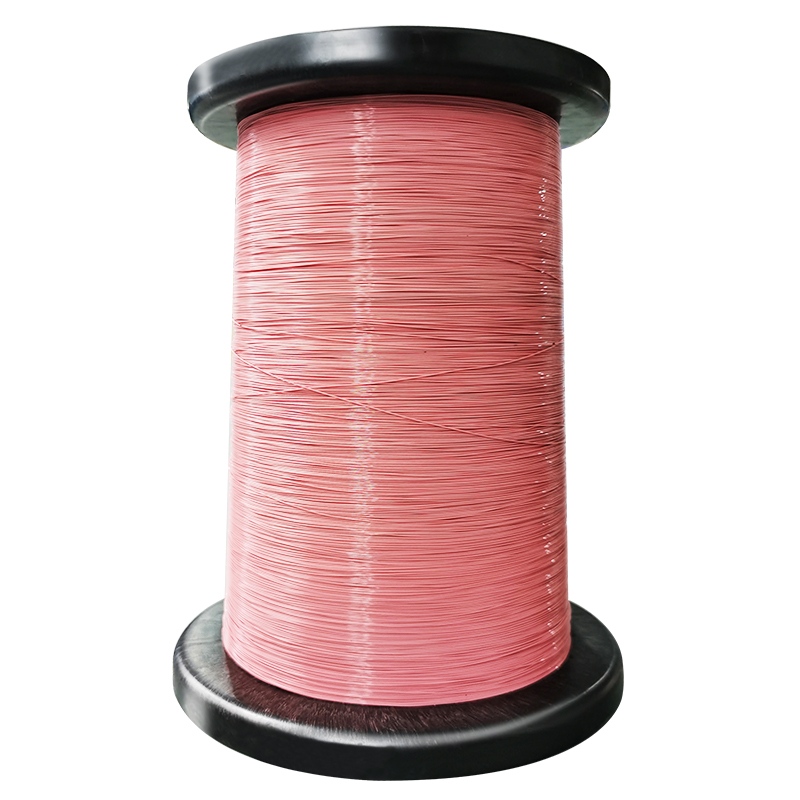

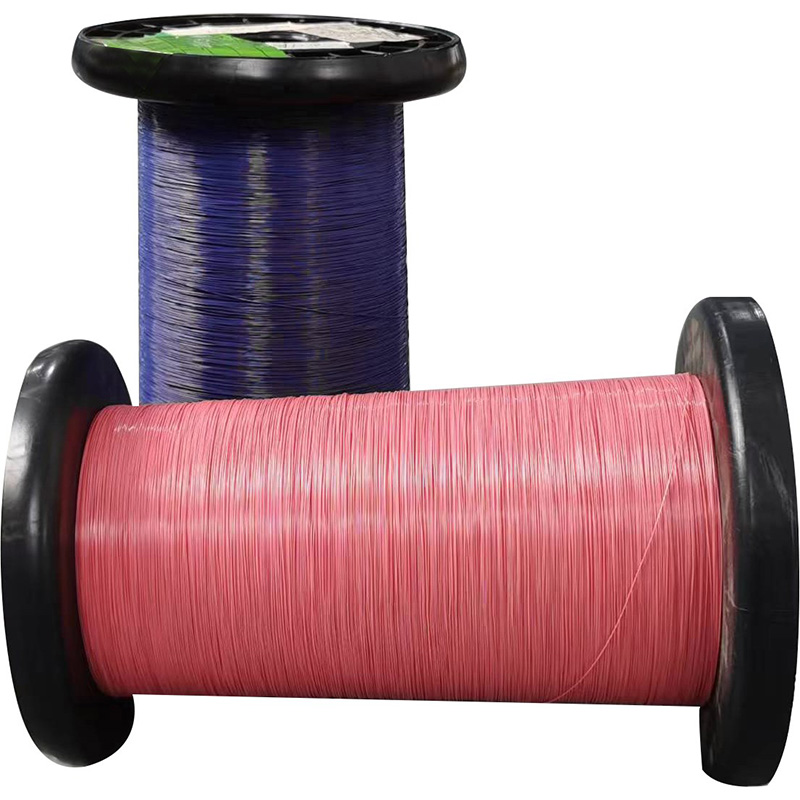

PTFE Insulated Magnet Wire

This Huaying PTFE Insulated Magnet Wire is manufactured by Huizhou Huaying Electronic Technology Co., Ltd. Are you familiar with this company? It's no small feat. Its clients are well-known major manufacturers—our products are used in Xiaomi's mobile phone chargers, Huawei's communications equipment, and BYD's new energy vehicles. Imagine how demanding these major manufacturers are of their suppliers, and their quality control standards are incredibly demanding. Our ability to consistently supply them demonstrates that our product quality has long been tested by the market, and this Huaying PTFE Insulated Magnet Wire is no exception!

Send Inquiry

Product Description

Product Certifications

Our company's certifications are literally everywhere! For example, titles like National High-Tech Enterprise and Specialized New Enterprise are not awarded casually. Not every company can achieve these qualifications; they require genuine technology and proven capabilities. Not to mention production management, we hold ISO 9001, ISO 14001, and IATF 16949 certifications. From raw material procurement to factory production, every step is rigorously monitored. Just like looking for the QS mark when buying food, these certifications give you peace of mind when buying Huaying PTFE Insulated Magnet Wire.

Product Material

The Huaying PTFE Insulated Magnet Wire uses single-core bare copper as the default conductor. This material offers exceptional conductivity among common metals! Its resistance is extremely low, generating minimal heat when energized, allowing current to flow effortlessly and smoothly. There's no need to worry about excessive heat affecting equipment operation. If you have special needs, we're happy to help. For example, if your equipment needs to be used in a corrosive environment and you'd like to switch the core wire to tinned copper or other more suitable materials, we offer flexible customization to ensure your exact requirements are met. Ultimately, our goal is to help every customer improve their productivity and provide a worry-free and smooth experience!

Product Durability

This Huaying PTFE Insulated Magnet Wire withstands long-term exposure to outdoor environments and harsh weather conditions with minimal degradation in performance. For example, rooftop photovoltaic inverter wiring experiences daily exposure to sun, rain, wind, snow, and UV radiation. Conventional wires experience insulation degradation and cracking within a few years, necessitating frequent replacement. This wire, however, easily withstands the effects of intense heat and UV radiation, erosion from rain and snow, and even airborne dust and contaminants. Its surface condition and electrical performance remain stable. Even after ten or eight years, it will still feel as smooth as new, with no noticeable change in conductivity.

Specifications(single series.Conventional)

Conductor		Finished outside diameter			Conductor resistance(20 degrees Celsius) (Ω/km)	Elongation %
Conductor	Tolerance	Minimum Value	Target Value	Maximum Value	Conductor resistance(20 degrees Celsius) (Ω/km)	Elongation %
0.15	0.008	0.342	0.350	0.358	1037.00	≥10%
0.16	0.008	0.352	0.360	0.368	908.80	≥10%
0.17	0.008	0.362	0.370	0.378	853.50	≥10%
0.18	0.008	0.372	0.380	0.388	757.20	≥10%
0.20	0.008	0.392	0.400	0.408	577.20	≥10%
0.21	0.008	0.402	0.410	0.418	549.00	≥10%
0.22	0.008	0.412	0.420	0.428	498.40	≥10%
0.23	0.008	0.422	0.430	0.438	454.50	≥10%
0.24	0.008	0.432	0.440	0.448	416.20	≥10%
0.25	0.008	0.442	0.450	0.458	370.20	≥10%
0.26	0.008	0.452	0.460	0.468	358.40	≥10%
0.27	0.008	0.462	0.470	0.478	331.40	≥15%
0.28	0.008	0.472	0.480	0.488	294.10	≥15%
0.29	0.008	0.482	0.490	0.498	285.70	≥15%
0.30	0.008	0.492	0.500	0.508	254.00	≥15%
0.32	0.008	0.512	0.520	0.528	222.80	≥15%
0.35	0.008	0.542	0.550	0.558	185.70	≥15%
0.37	0.008	0.562	0.570	0.578	165.90	≥15%
0.40	0.008	0.592	0.600	0.608	141.70	≥15%
0.45	0.008	0.642	0.650	0.658	112.10	≥15%
0.50	0.008	0.692	0.700	0.708	89.95	≥20%
0.55	0.008	0.742	0.750	0.758	78.15	≥20%
0.60	0.008	0.792	0.800	0.808	65.26	≥20%
0.65	0.008	0.842	0.850	0.858	55.31	≥20%
0.70	0.010	0.892	0.900	0.908	47.47	≥20%
0.75	0.010	0.942	0.950	0.958	41.19	≥20%
0.80	0.010	0.992	1.000	1.008	36.08	≥25%
0.85	0.010	1.042	1.050	1.058	31.87	≥25%
0.90	0.010	1.092	1.100	1.108	28.35	≥25%
0.95	0.010	1.142	1.150	1.158	25.38	≥25%
1.00	0.010	1.192	1.200	1.208	23.33	≥25%
