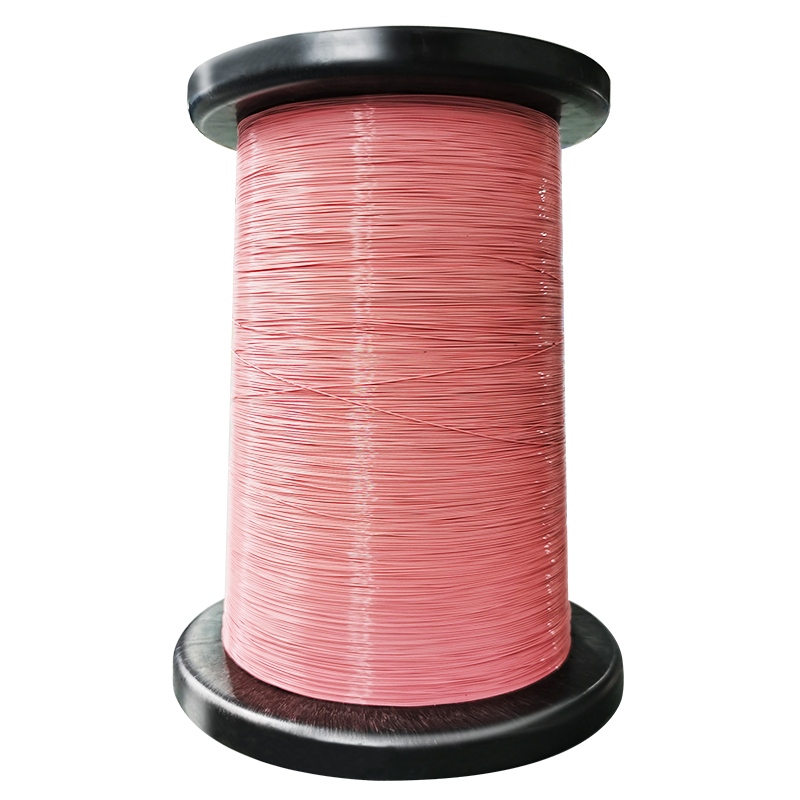

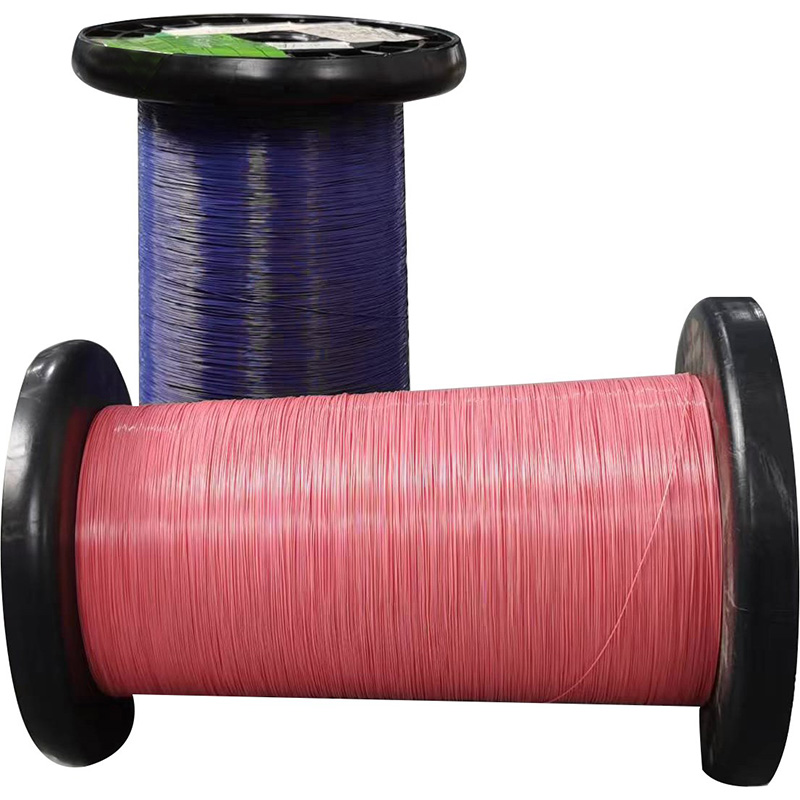

ETFE Insulated Magnet Wire
This Huaying ETFE Insulated Magnet Wire is manufactured by Huizhou Huaying Electronic Technology Co., Ltd. and supplied to customers in numerous countries around the world, receiving widespread acclaim. This strong reputation stems from our high-quality products, our dedicated technical research, and our rigorous manufacturing process.
Product Emergency Performance
Let's discuss the emergency performance of this Huaying ETFE Insulated Magnet Wire. Its emergency performance is truly exceptional! Did you know that its oxygen index can exceed 90? Thanks to its excellent flame retardancy, it can effectively contain a fire in the event of a short circuit, preventing it from spreading—a crucial requirement in industrial environments. Even more impressive: after 5,000 hours of UV accelerated aging testing, its insulation resistance still maintains over 95% of its initial value. This remarkable stability is truly remarkable. It's precisely because of this reliability, regardless of weather or environment, that it has become the preferred wire material for 5G base station power modules. People choose it for its peace of mind!
Product Support Services
As for Huaying's customized ETFE Insulated Magnet Wire, we offer exceptionally thoughtful service, fully meeting diverse needs. Firstly, regarding specifications, we can produce any desired size, ranging from 0.05mm to 1.0mm, with exceptionally flexible production. For multi-strand wire, we can achieve precision twisting up to 3000p, with uncompromising precision. As for conductor materials, copper and aluminum are available for selection. Furthermore, our production process utilizes an online quality monitoring system, ensuring a fast response time even for small orders. Furthermore, we update international metal prices daily, ensuring customers receive the best possible purchase cost and avoid wasting money. After-sales service is also a breeze. Our company has established a rapid response mechanism and a professional technical support team on standby at all times, ensuring you always have the right person to contact for any questions. Bulk purchases also include free sample testing and even assistance with application design. What a thoughtful service! Regardless of which batch of products leaves the factory, they are accompanied by a complete material report and performance test data. Every indicator is clearly documented, ensuring peace of mind for customers.
Application Scenarios

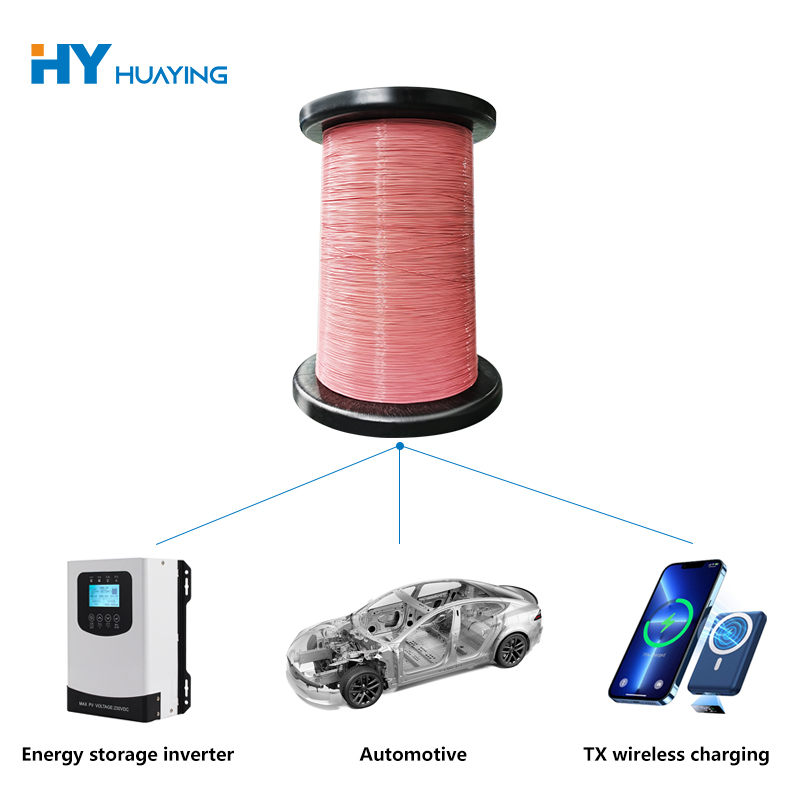

Huaying ETFE Insulated Magnet Wire is used in high-end applications such as new energy vehicle motor windings and internal wiring in medical equipment. Its high-temperature resistance meets the requirements of continuous operation at 150°C in automotive engine compartments, and its non-toxicity has passed medical-grade biocompatibility testing. Actual use cases have shown no signs of cracking in the insulation layer even after 5,000 hours of use in the vibration environment of military equipment. With so many real-world applications, what are you still waiting for? Contact us now!
Specifications(single series.Conventional)
| Conductor | Finished outside diameter | Conductor resistance(20 degrees Celsius) (Ω/km) | Elongation % | |||
| Conductor | Tolerance | Minimum Value | Target Value | Maximum Value | ||
| 0.15 | 0.008 | 0.342 | 0.350 | 0.358 | 1037.00 | ≥10% |
| 0.16 | 0.008 | 0.352 | 0.360 | 0.368 | 908.80 | ≥10% |
| 0.17 | 0.008 | 0.362 | 0.370 | 0.378 | 853.50 | ≥10% |
| 0.18 | 0.008 | 0.372 | 0.380 | 0.388 | 757.20 | ≥10% |
| 0.20 | 0.008 | 0.392 | 0.400 | 0.408 | 577.20 | ≥10% |
| 0.21 | 0.008 | 0.402 | 0.410 | 0.418 | 549.00 | ≥10% |
| 0.22 | 0.008 | 0.412 | 0.420 | 0.428 | 498.40 | ≥10% |
| 0.23 | 0.008 | 0.422 | 0.430 | 0.438 | 454.50 | ≥10% |
| 0.24 | 0.008 | 0.432 | 0.440 | 0.448 | 416.20 | ≥10% |
| 0.25 | 0.008 | 0.442 | 0.450 | 0.458 | 370.20 | ≥10% |
| 0.26 | 0.008 | 0.452 | 0.460 | 0.468 | 358.40 | ≥10% |
| 0.27 | 0.008 | 0.462 | 0.470 | 0.478 | 331.40 | ≥15% |
| 0.28 | 0.008 | 0.472 | 0.480 | 0.488 | 294.10 | ≥15% |
| 0.29 | 0.008 | 0.482 | 0.490 | 0.498 | 285.70 | ≥15% |
| 0.30 | 0.008 | 0.492 | 0.500 | 0.508 | 254.00 | ≥15% |
| 0.32 | 0.008 | 0.512 | 0.520 | 0.528 | 222.80 | ≥15% |
| 0.35 | 0.008 | 0.542 | 0.550 | 0.558 | 185.70 | ≥15% |
| 0.37 | 0.008 | 0.562 | 0.570 | 0.578 | 165.90 | ≥15% |
| 0.40 | 0.008 | 0.592 | 0.600 | 0.608 | 141.70 | ≥15% |
| 0.45 | 0.008 | 0.642 | 0.650 | 0.658 | 112.10 | ≥15% |
| 0.50 | 0.008 | 0.692 | 0.700 | 0.708 | 89.95 | ≥20% |
| 0.55 | 0.008 | 0.742 | 0.750 | 0.758 | 78.15 | ≥20% |
| 0.60 | 0.008 | 0.792 | 0.800 | 0.808 | 65.26 | ≥20% |
| 0.65 | 0.008 | 0.842 | 0.850 | 0.858 | 55.31 | ≥20% |
| 0.70 | 0.010 | 0.892 | 0.900 | 0.908 | 47.47 | ≥20% |
| 0.75 | 0.010 | 0.942 | 0.950 | 0.958 | 41.19 | ≥20% |
| 0.80 | 0.010 | 0.992 | 1.000 | 1.008 | 36.08 | ≥25% |
| 0.85 | 0.010 | 1.042 | 1.050 | 1.058 | 31.87 | ≥25% |
| 0.90 | 0.010 | 1.092 | 1.100 | 1.108 | 28.35 | ≥25% |
| 0.95 | 0.010 | 1.142 | 1.150 | 1.158 | 25.38 | ≥25% |
| 1.00 | 0.010 | 1.192 | 1.200 | 1.208 | 23.33 | ≥25% |
