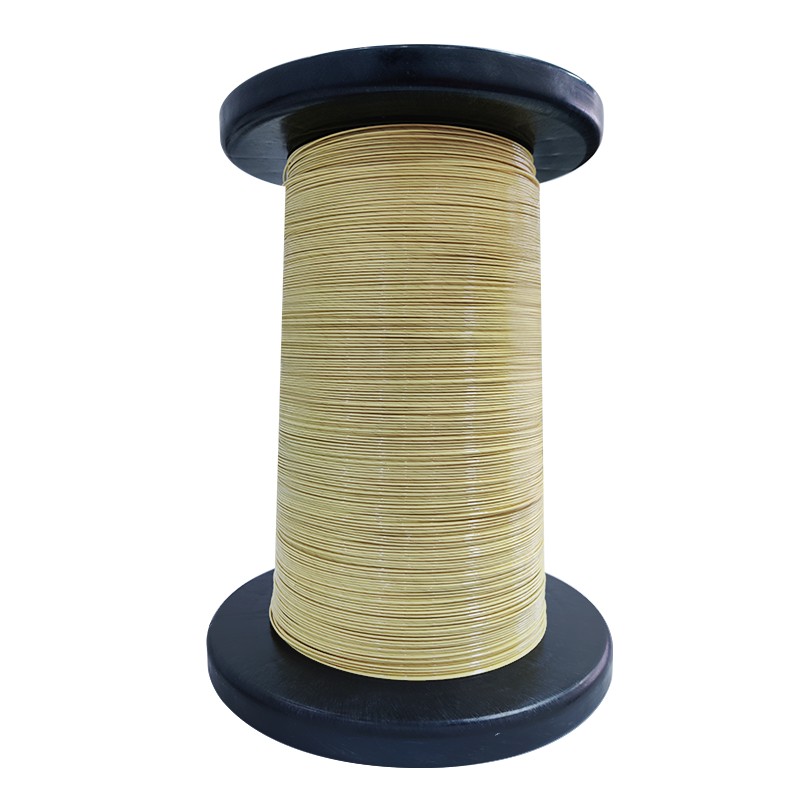

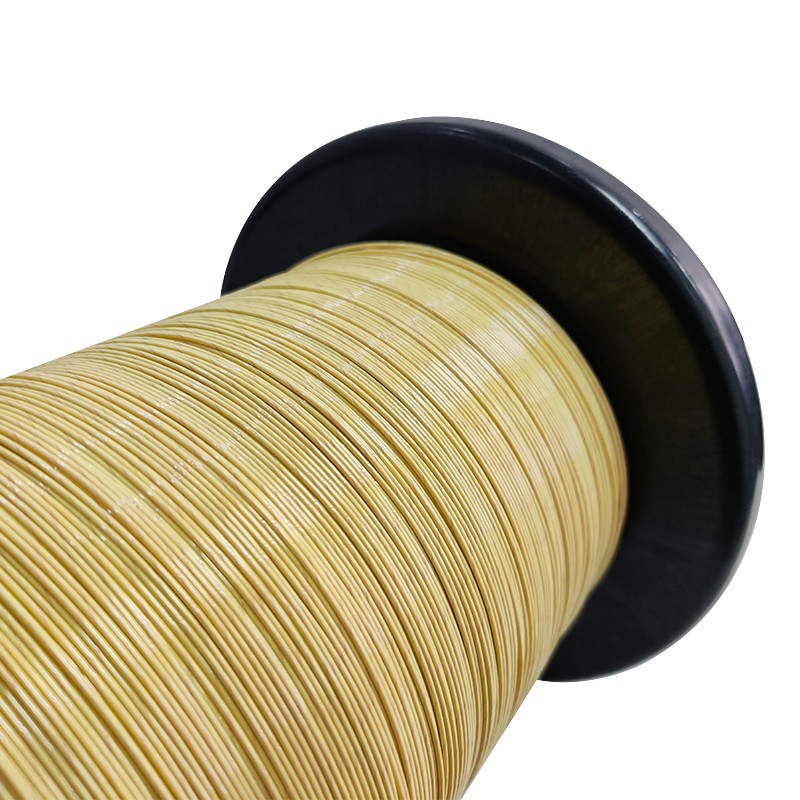

Polyimide Film-Folded Wire
Huaying Polyimide Film-Folded Wire is a product manufactured by Huizhou Huaying Electronic Technology Co., Ltd. This product is no simple matter; it's not simply manufactured. It complies with standards such as UL 2353 for Special Transformer Winding Wire, UL 1950 for Safety of Information Technology Equipment, KS C 3006 for Test Methods of Porcelain-Coated Wire, and the CAN/CSA series of standards for electronic equipment and transformers. Each standard is like a "checkpoint," and our products successfully pass them, demonstrating their quality and ability to withstand the scrutiny of these diverse standards.
Product Toughness
Let's conduct a small test by repeatedly bending Huaying Polyimide Film-Folded Wire several times. You'll find that it's remarkably flexible. Even after being bent to a certain angle, it quickly returns to its original shape after release, without breaking or peeling off the insulation. This is particularly important in practical applications, such as when adjusting the wire routing during equipment assembly. A highly flexible wire prevents breakage and facilitates installation.
Environmental Performance of the Product
Our company is not only ISO 14001 certified for environmental management systems, but we also insist on using environmentally friendly materials in the production of Huaying Polyimide Film-Folded Wire. For example, the PET and ETFE materials used in the insulation layer are ROHS and REACH halogen-free. Scrap generated during the production process is also recycled, preventing waste from polluting the environment. Many companies focused on green production, such as smart home brands, now prioritize Huaying's wire because of this commitment to environmental protection.
Product Applications

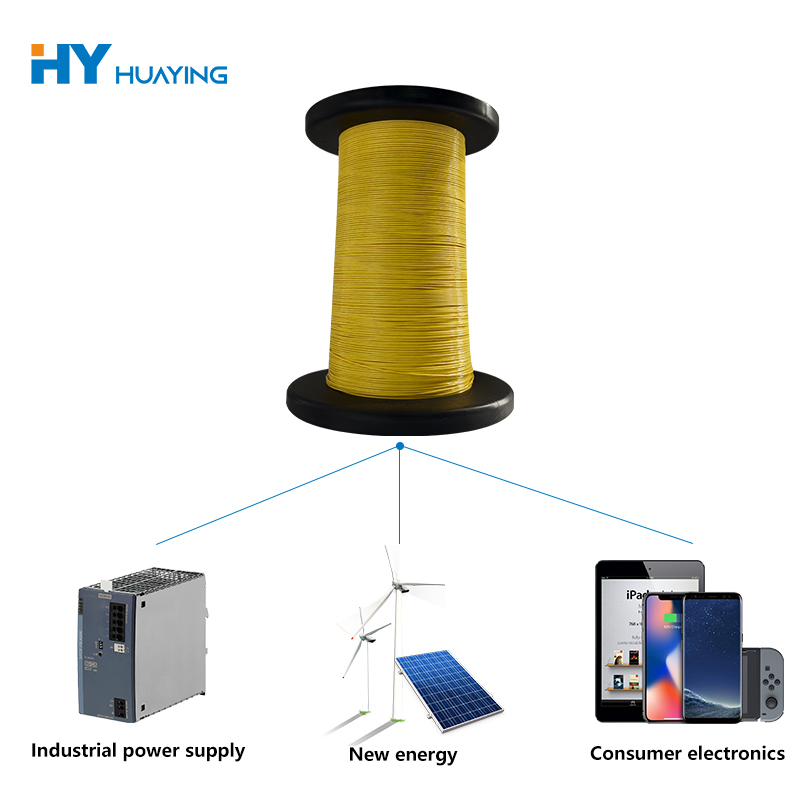

Huaying Polyimide Film-Folded Wire has a wide range of applications, practically adapting to any need. In the electronic control systems of new energy vehicles, it ensures stable power transmission. In medical equipment, its high insulation and high-temperature resistance ensure safe operation. It also easily meets the stringent requirements for wiring in 5G base stations and aerospace equipment. It can even be found in small transformers in smart homes and the wires in mobile phone power banks, truly covering multiple critical applications.
Product Specifications
| Electric Conductor | overall diameter target value | Conductor resistance (20℃) (Ω/km) | Electric Conductor | overall diameter target value | Conductor resistance (20℃) (Ω/km) |
| 0.25 | 0.59 | 370.20 | 0.50 | 0.84 | 89.95 |
| 0.26 | 0.6 | 358.40 | 0.55 | 0.89 | 78.15 |
| 0.27 | 0.61 | 331.40 | 0.60 | 0.94 | 65.26 |
| 0.28 | 0.62 | 294.10 | 0.65 | 0.99 | 55.31 |
| 0.29 | 0.63 | 285.70 | 0.70 | 1.04 | 47.47 |
| 0.30 | 0.64 | 254.00 | 0.75 | 1.09 | 41.19 |
| 0.32 | 0.66 | 222.80 | 0.80 | 1.14 | 36.08 |
| 0.35 | 0.69 | 185.70 | 0.85 | 1.19 | 31.87 |
| 0.37 | 0.71 | 165.90 | 0.90 | 1.24 | 28.35 |
| 0.40 | 0.74 | 141.70 | 0.95 | 1.29 | 25.38 |
| 0.45 | 0.79 | 112.10 | 1.00 | 1.34 | 23.33 |
