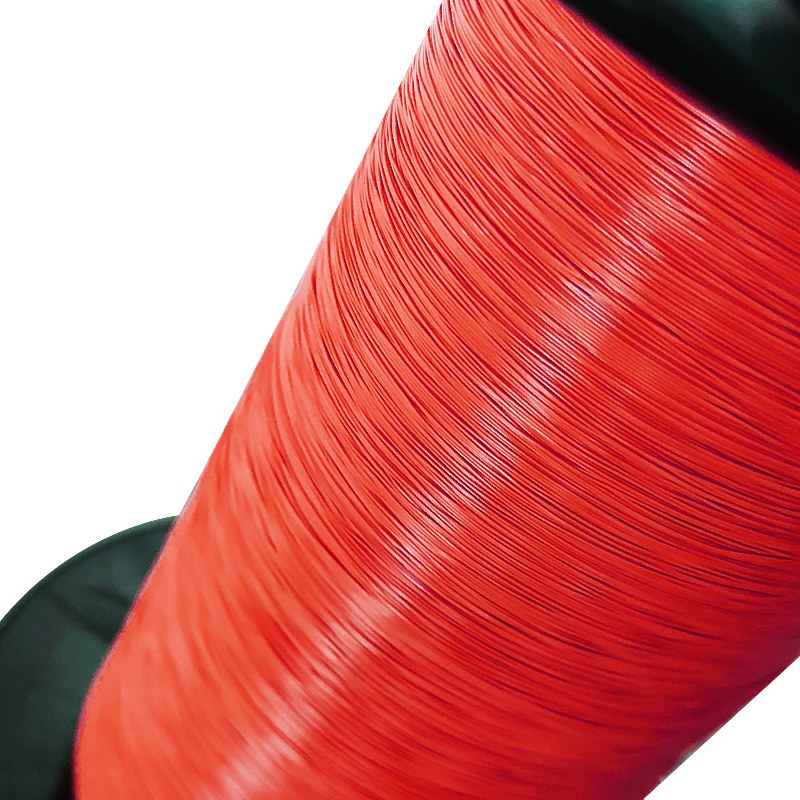

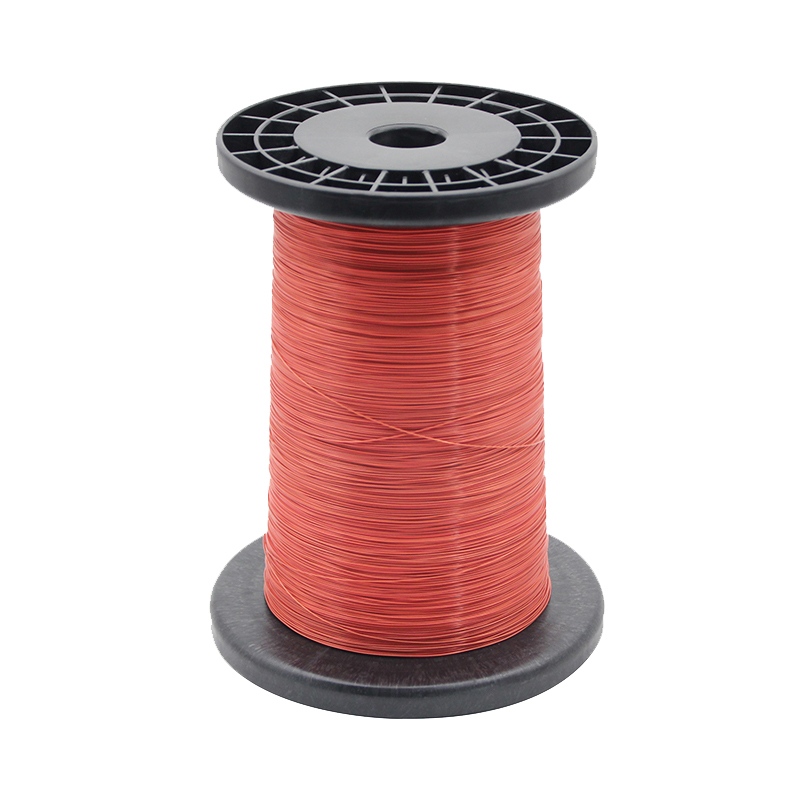

Solderable Triple Insulated Wire

Huizhou Huaying Electronic Technology Co., Ltd. is the manufacturer and supplier of Huaying Solderable Triple Insulated Wire. From humble beginnings to a leading position in the industry, Huaying Electronics has relied on its unwavering dedication to the research, development, and production of insulated wire. Through steady progress, they have become a trusted player in the industry, supplying high-quality products and attentive service to numerous companies. So, choose us and feel confident.

Send Inquiry

Product Description

Diverse Product Selection

Huaying Solderable Triple Insulated Wire offers a comprehensive selection of models, including both three-layer single-strand and three-layer multi-strand insulated wires. Regardless of your application or specific needs, we can meet your needs. The default color is yellow, but we can also customize your color if you have a special preference. Whether you prefer a discreet and sophisticated look or a touch of individuality, we can accommodate your requirements, giving your product a unique and distinctive appearance.

Excellent Product Performance

Huaying Solderable Triple Insulated Wire's performance is truly impressive, leading the industry. Its insulation strength is exceptionally high; even two layers can withstand a safe voltage of 2000V AC. Even in complex electrical environments, it effectively prevents leakage and short circuits, ensuring the smooth operation of equipment. Furthermore, its high current density allows for more efficient power transmission, significantly improving energy efficiency. Using it to wind transformers can also reduce their weight and size, significantly contributing to miniaturized and lightweight product designs and enhancing your product's market competitiveness.

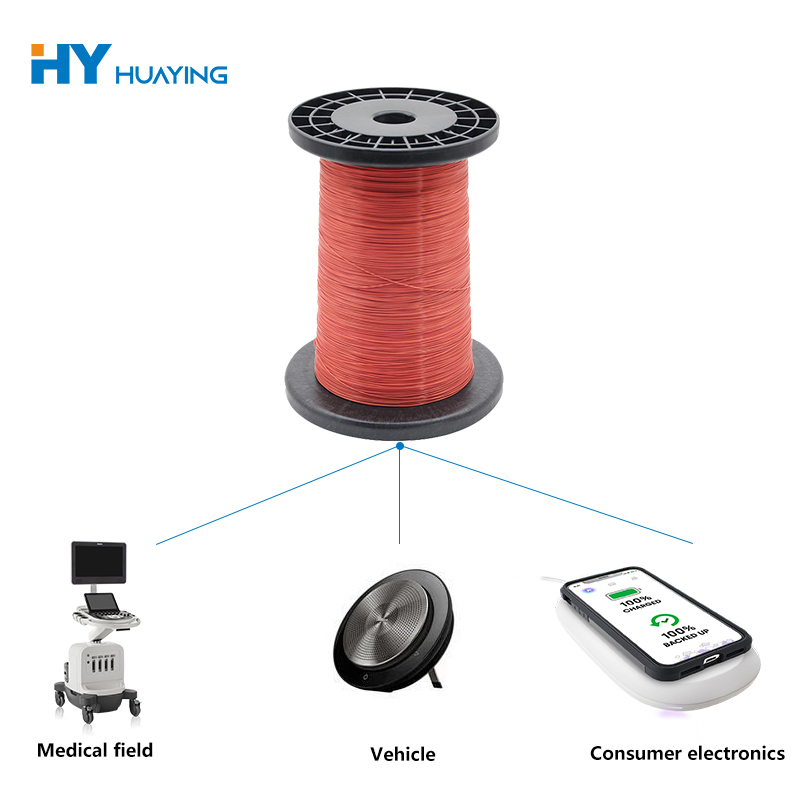

Wide Applications

Regarding the wide range of applications for Huaying Solderable Triple Insulated Wire, the application scope is truly vast. Integrating it into adapter power transformers improves power transmission efficiency, ensuring stable operation and delivering consistent power to various electronic devices. Using it on magnetic rings improves their performance, making electromagnetic conversion more efficient. It's indispensable in computer power supplies and mobile phone chargers—ensuring the safety and efficiency of charging these devices. Whether in industrial production or daily life, it's ubiquitous, quietly contributing to the convenience and support of our lives and work.

Solderable Triple Insulated Wire

conductor	overall diameter target value	Conductor resistance (20℃) (Ω2/km)	conductor	overall diameter target value	Conductor resistance (20℃) (Ω2/km)
0.15	0.350	1037.00	0.35	0.550	185.70
0.16	0.360	908.80	0.37	0.570	165.90
0.17	0.370	853.50	0.40	0.600	141.70
0.18	0.380	757.20	0.45	0.650	112.10
0.20	0.400	577.20	0.50	0.700	89.95
0.21	0.410	549.00	0.55	0.750	78.15
0.22	0.420	498.40	0.60	0.800	65.26
0.23	0.430	454.50	0.65	0.850	55.31
0.24	0.440	416.20	0.70	0.900	47.47
0.25	0.450	370.20	0.75	0.950	41.49
0.26	0.460	358.40	0.80	1.000	36.08
0.27	0.470	331.40	0.85	1.050	31.87
0.28	0.480	294.10	0.90	1.100	28.35
0.29	0.490	285.70	0.95	1.150	25.38
0.30	0.500	254.00	1.00	1.200	23.33
0.32	0.520	222.80

Series specification of stranded three-layer insulated wire

conductor	overall diameter target value	Conductor resistance (20℃) (Ω2/km)	conductor	overall diameter target value	Conductor resistance (20℃) (Ω2/km)
0.17x7	0.781	128.5	0.35x7	1.331	30.3
0.18x7	0.811	114.6	0.37x7	1.392	27.1
0.20x7	0.872	92.8	0.20x10	1.004	65.0
0.23x7	0.964	70.2	0.20x15	1.184	43.3
0.23x15	1.318	32.8	0.20x25	1.471	32.5
0.25x7	1.025	27.7	0.21x7	0.903	254.00
0.25x19	1.559	21.9	0.22x7	0.933	26.0
0.27x7	1.086	51.0	0.25×2	0.700	84.2
0.30x7	1.178	41.3
